Interface separated AI edge gateway to support various communication methods
PINIX AIoT Gateway
AIoT gateway for data collection, AI inference, and transmission to higher-level servers through connection to interfaces for various sensors and devices
Equipped with high-performance processing for EDGE processing
Anomaly detection application with AI inference engine (examples of application: fire detection, abnormal detection through motor vibration)
Connects with up to two interface modules by wire
Supplies power to the interface module and sensor units
Provides GigE and USB 3.0 high-speed camera interfaces for video analysis in real time
When changing the target sensor or its communication method, it‘s possible to replace only the interface module.
Easy to transfer to and reuse in other facilities

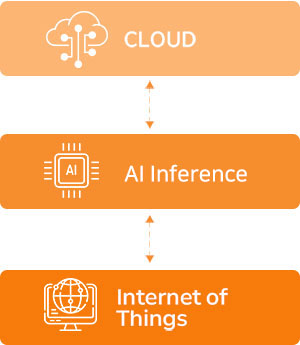

Edge Processing Technology
Possible to configure the effective industrial environment by processing large-capacity data and shortening the longer data processing time using a method of supporting accelerated data flow in the EDGE gateway without sending the collected data from a variety of sensors to the centralized data center.
- Shortens data processing time
Providing emission monitoring by manager and operator through the dashboard setting
- Alert/warning event notification
Provides real-time notification when out of the set threshold value
- Provides analysis reports
Provides weekly, monthly, and quarterly reports downloadable in Excel
▼ ▼
PINIX IoT monitoring screen
01
PINIX Digital I/F Module
An eight-channel digital interface module to collect data from various digital sensors and devices and transmit it to the IoT Gateway.
24 VDC to drive power supply from the IoT gateway module
24 VDC or 5 VDC power supply to drive sensors and devices (production option)
Eight-channel RS232/422/485 communication supported
Transmits collected data to the upper gateway
02
PINIX Serial I/F Module
An eight-channel serial interface module for collecting data from various digital sensors and devices and transmitting it to the IoT gateway.
24 VDC to drive power supply from the IoT gateway module
5 VDC power supply to drive sensors and devices
Eight-channel UART/I2C serial communication supported
Transmits collected data to the upper gateway
03
PINIX Analog I/F Module
An eight-channel analog interface module for collecting data from various sensors and devices that support analog input and sending it to the IoT gateway.
24 VDC to drive power supply from the IoT gateway module
Eight-channel 12 bit, 8 K/Ch
DSUB-9 gender option provided for current sensor connection
Transmits collected data to the upper gateway
04
PINIX DAQ I/F Module
As an interface module for connecting with the PINIX main module and measuring vibration and noise through the IEPE sensor, it is an IoT gateway for collecting and processing analog sensor data simultaneously through the connection of up to four IEPE sensors per IEPE DAQ.
Channel IEPE (integrated electronic piezoelectric) sensor analog input provided
Can make simultaneous high-resolution measurements through four 24-bit delta-sigma A/D converters.
05
Commercial IOLINK Master Module Interface
As a universal sensor gateway for collecting and transmitting data from various sensors and devices that support IOLINK input, it is an IoT Gateway that supports the connection of up to eight sensors.
Collects IO-link sensor data
Edge processing of collected data
Transmits collected data through wired / Wi-Fi communication
